Product Information

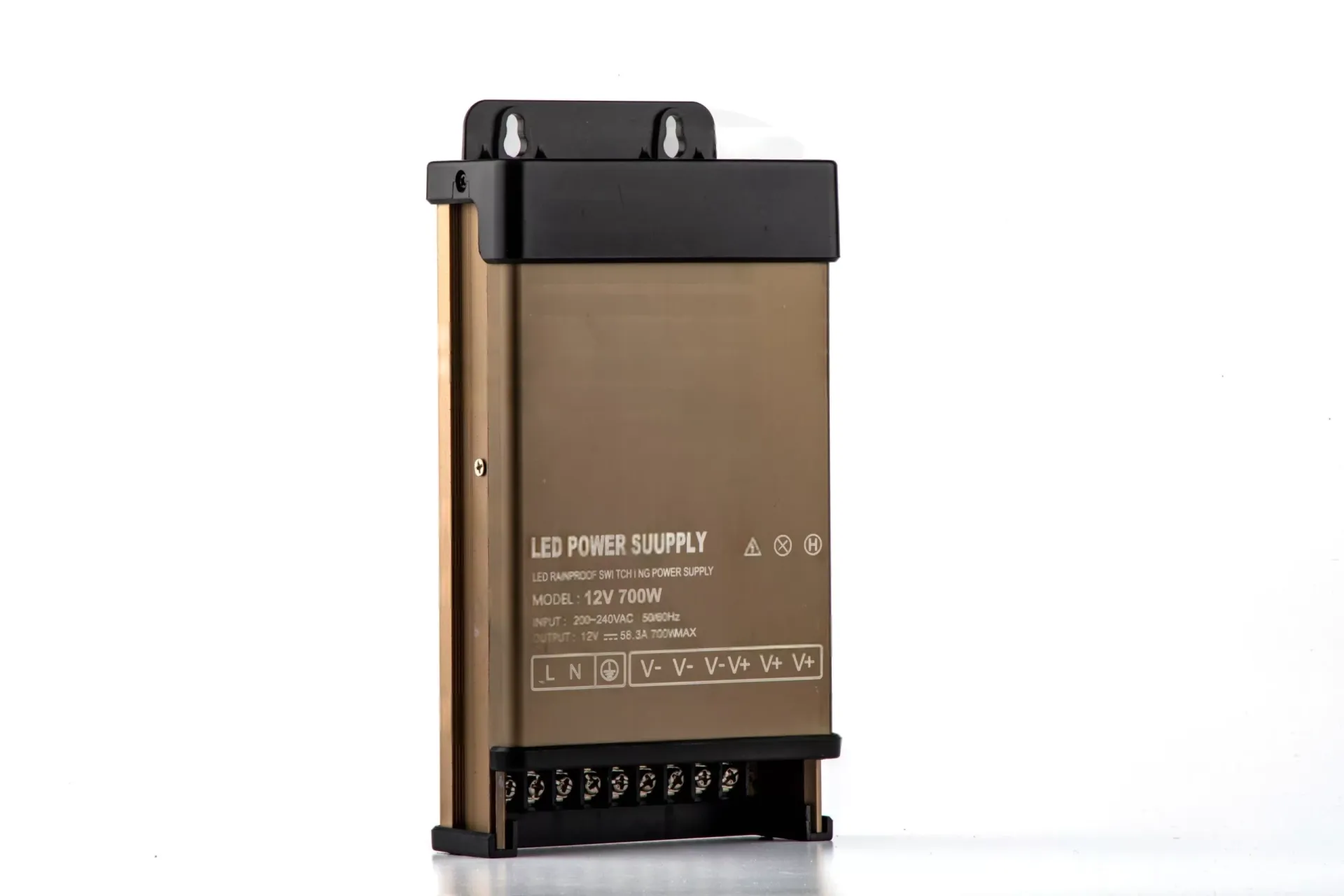

Dinamo Light Rainproof Adapters
Dinamo Light Rain-Proof Adapters are reliable and durable power sources for outdoor lighting systems. Their IP45 aluminum casings are resistant to water and dust. Overvoltage, overcurrent, and short-circuit protection features enhance system safety.
Technical Specifications
The table below summarizes the technical specifications of the available Dynamo Light Rainproof Adapter models:
Model | Power (W) | Current (A) | Dimensions (mm) | Protection Class |
|---|---|---|---|---|
12V-60W | 60 | 5 | 116×73×42 | IP44 |
12V-100W | 100 | 8.5 | 149×115×42 | IP44 |
12V-150W | 150 | 12.5 | 190×115×52 | IP44 |
12V-200W | 200 | 16.7 | 190×115×52 | IP44 |
12V-250W | 250 | 21 | 190×115×52 | IP44 |
12V-400W | 400 | 33.3 | 190×116×50 | IP44 |
12V-500W | 500 | 41 | 217×116×50 | IP44 |
12V-600W | 600 | 50 | 217×116×50 | IP44 |
12V-700W | 700 | 58.3 | 217×116×50 | IP44 |
All models operate with an input voltage of AC 180–240V 50/60Hz and an output voltage of DC 12V ±5%. Operating temperature is 0°C to 50°C, and storage temperature is -20°C to 60°C. Ambient humidity is 0 to 95%, non-condensing. Working efficiency is 80%.
Areas of Use
Outdoor LED lighting systems
Signs and billboards
Industrial automation systems
Security camera systems
These adapters are an ideal solution for applications requiring high power. Thanks to their IP45 protection rating, they can be used safely in outdoor conditions.
